Outbuilding with Workshop, 008B-0002
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Mixed-use outbuilding plan satisfies a variety of needs

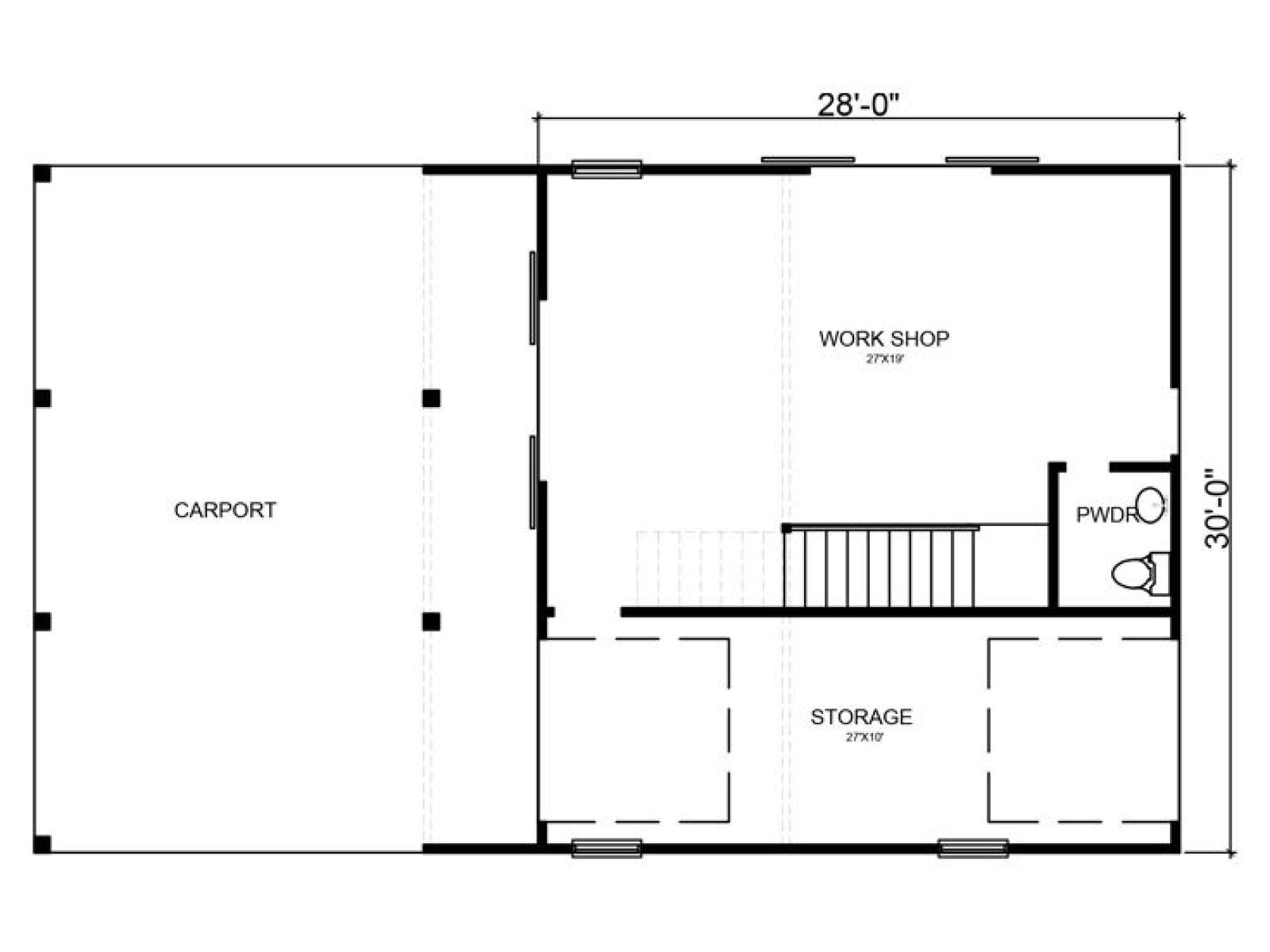

Carport offers barn door access to the spacious workshop
Drive-thru storage area is ideal for equipment and machinery or auto storage

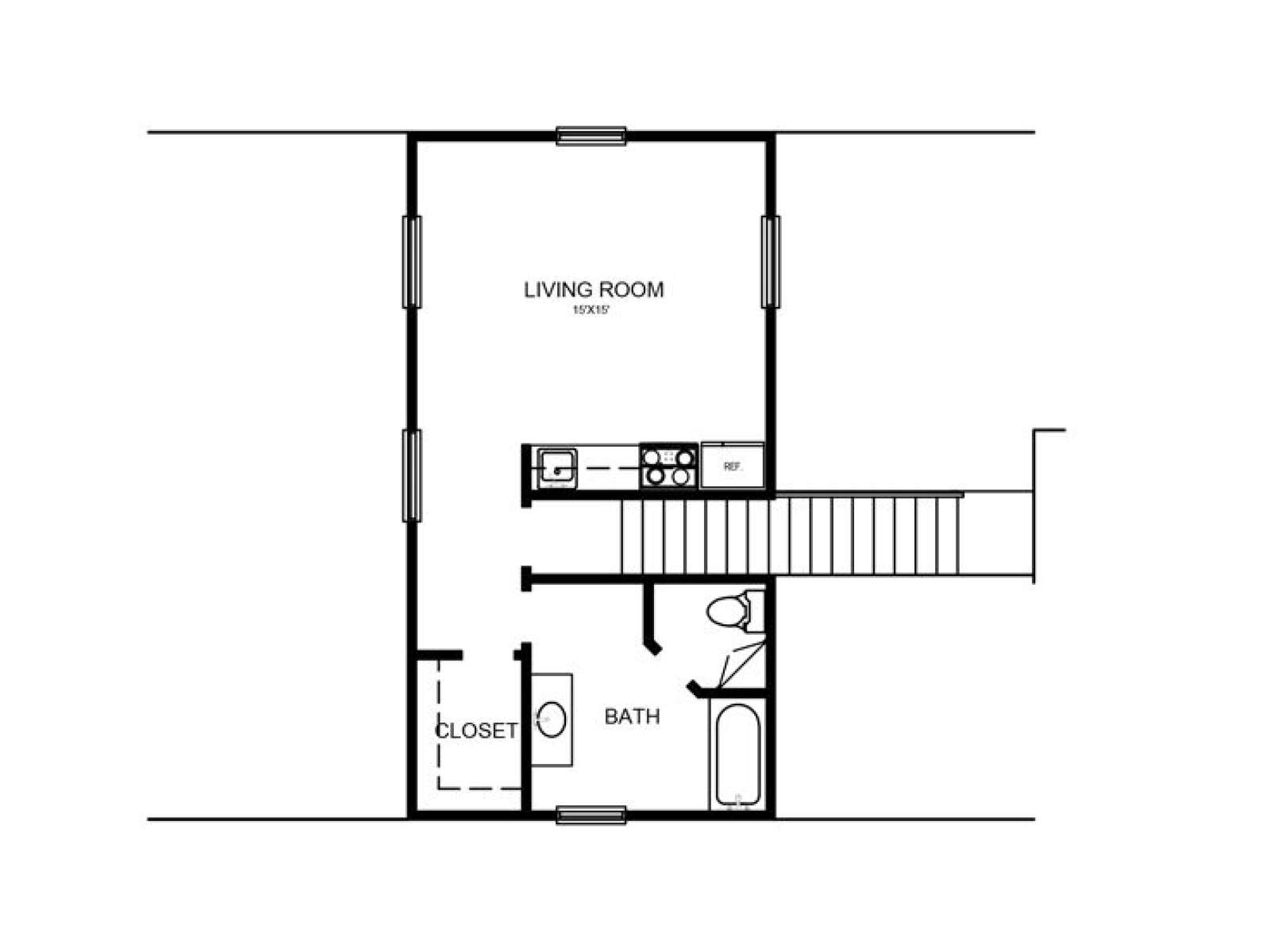

Upper level features a studio apartment complete with full bath and kitchenette, suitable for rental property or a guest suite
Design features two 8x8 overhead garage doors and two 8x8 barn doors
Per the designer, the roof framing can be either stick frame or trusses
| Heated Square Feet | |
| First Floor | 840 |
| Second Floor | 480 |
| Total | 1320 |
| Unheated Square Feet | |
| Carport/Porte Cochere | 510 |
| Bedrooms | 1 |
| Full Bathrooms | 1 |
| Half Bathrooms | 1 |
| Width | 50 ft. 0 in. |
| Depth | 30 ft. 0 in. |
| Approximate Height | 26 ft. 0 in. |
| Ceiling Height | |
| First Floor | 10 ft. 0 in. |
| Second Floor | 9 ft. 0 in. |
| Roof Pitch | 8/12 Main |
| Roof Pitch | 3/12 Other |
| Roof Framing |
|
| Garage Door Size(s) | 8x8 (2) |
| Foundation Options |
|
| Exterior Wall Options |
|
| Interior Features |
|
| Garage Features |
|
Mixed-use outbuilding plan satisfies a variety of needs
Carport offers barn door access to the spacious workshop
Drive-thru storage area is ideal for equipment and machinery or auto storage
Upper level features a studio apartment complete with full bath and kitchenette, suitable for rental property or a guest suite
Design features two 8x8 overhead garage doors and two 8x8 barn doors
Per the designer, the roof framing can be either stick frame or trusses
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | $45 | n/a | n/a |
| Priority 3 - 4 business days | $40 | $90 | $55 | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
