Room Addition Plan, 006X-0036

Plan 006X-0036
Reverse All Images
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

Room addition plan designed as a trophy room but flexible enough to accommodate other needs such as a game room or family room

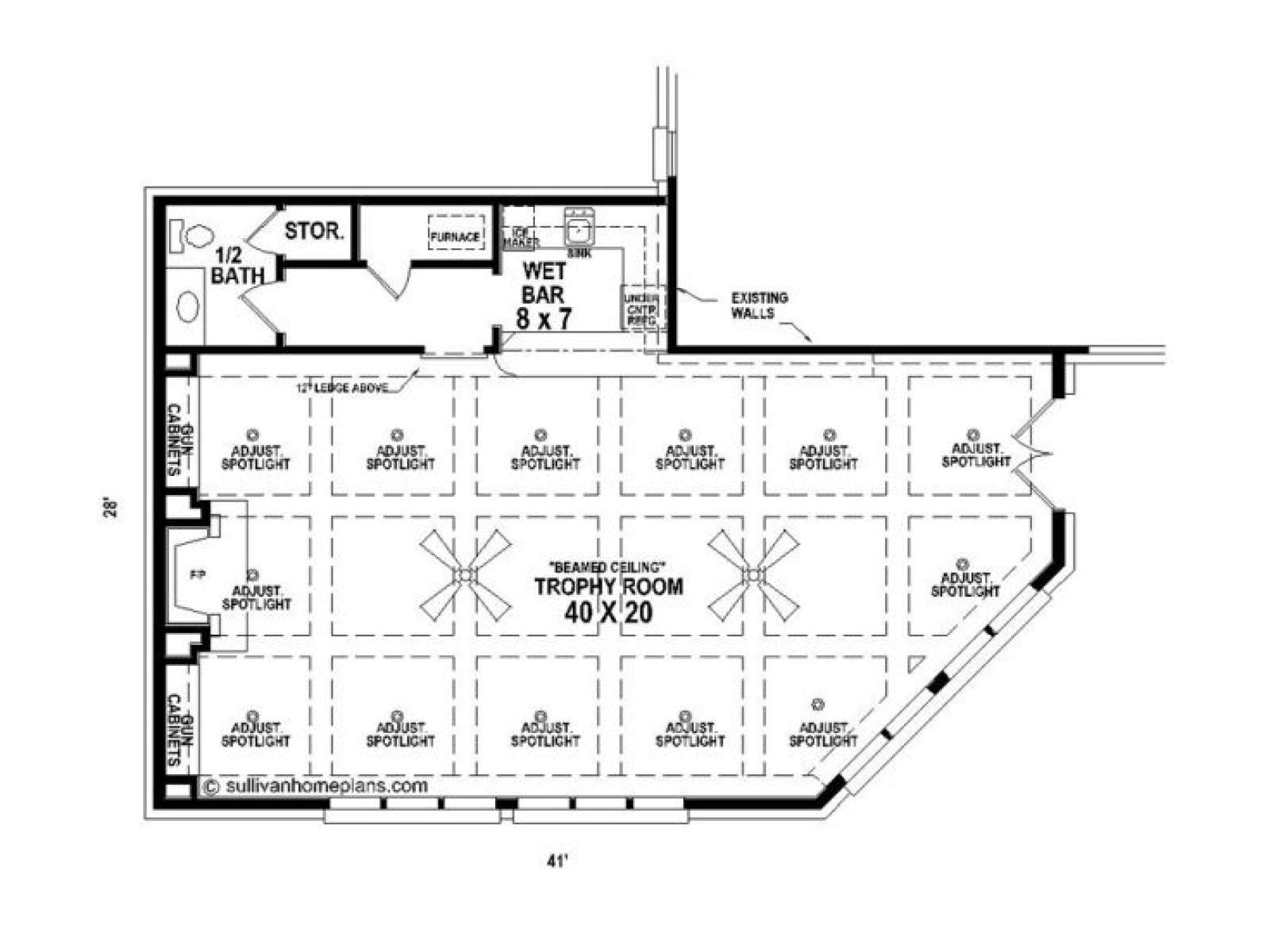

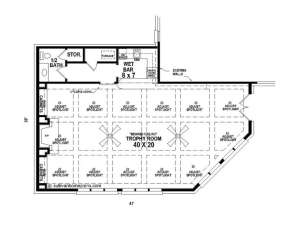

Floor plan includes fireplace, half bath and wet bar

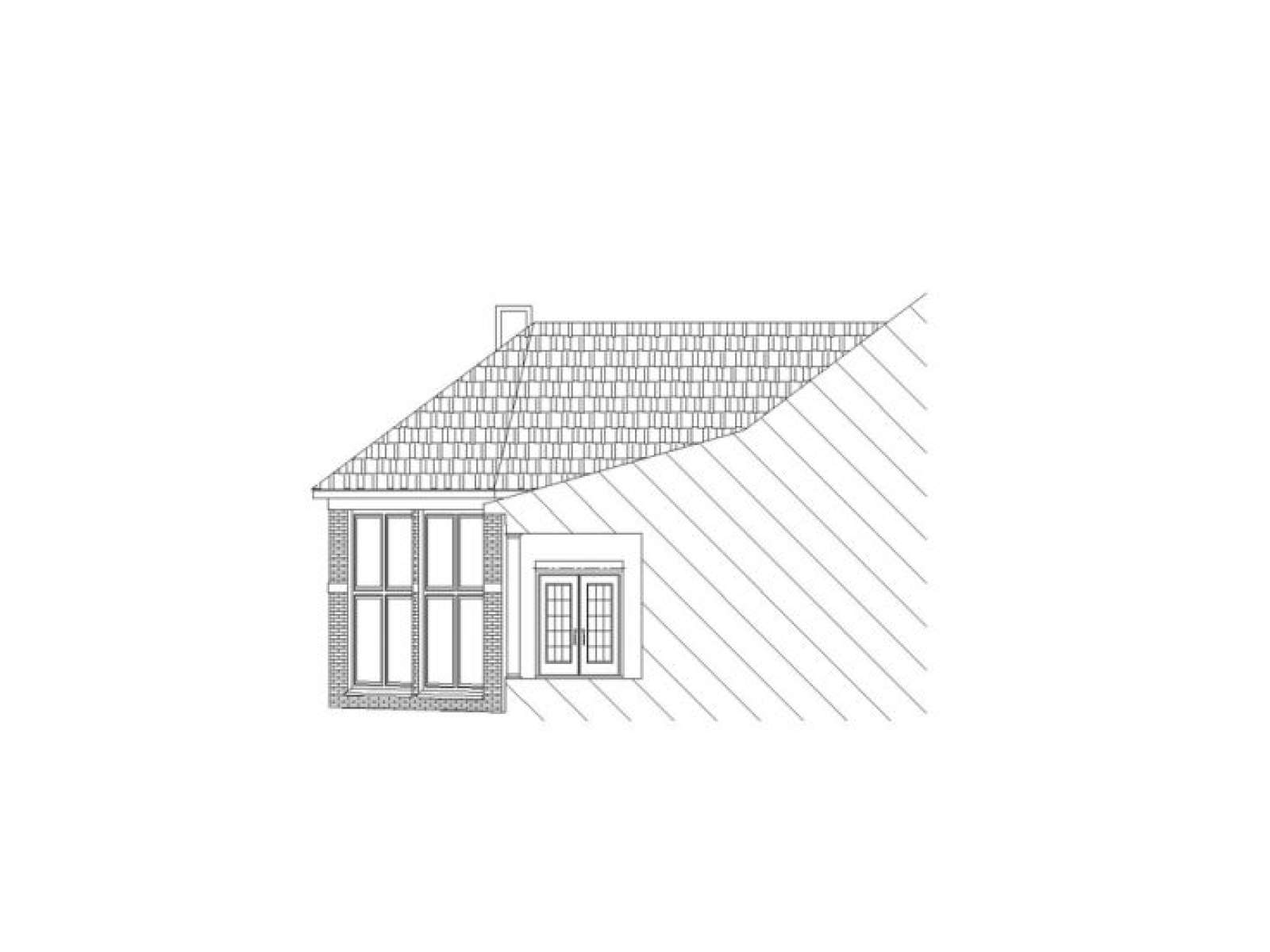

Double doors provide access to the outdoors or backyard
Total heated square footage – 1055 sf
Note: Exterior wall dimensions are rounded to the nearest foot. Contact us for specific measurements.
Note: Blueprints not complete. Please allow 1-2 weeks to complete and deliver the plans after ordering.







Heated Square Feet
Total 1055
Half Bathrooms 1
Width 41 ft. 0 in.
Depth 28 ft. 0 in.
Roof Framing
  • N/A
Foundation Options
  • Monolithic Slab
Exterior Wall Options
  • 2x6
Special Features
  • Fireplace/Woodstove

Room addition plan designed as a trophy room but flexible enough to accommodate other needs such as a game room or family room
Floor plan includes fireplace, half bath and wet bar
Double doors provide access to the outdoors or backyard
Total heated square footage – 1055 sf
Note: Exterior wall dimensions are rounded to the nearest foot. Contact us for specific measurements.
Note: Blueprints not complete. Please allow 1-2 weeks to complete and deliver the plans after ordering.







Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans
* Scroll right to view table
Continental US Canada AK/HI *International
Regular 8 - 12 business days $35 n/a n/a n/a
Priority 3 - 4 business days $40 n/a $55 n/a
Express 1 - 2 business days $55 n/a n/a n/a
Info

There are no reviews

View more
Add your review
Trophy Room Addition

Starting at

$695.00

Additional Options

Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets are available for purchase within 90 days of the original house plan purchase. [less] [more]

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] [more]
