Gate & Accessory Structure, 006X-0025

All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

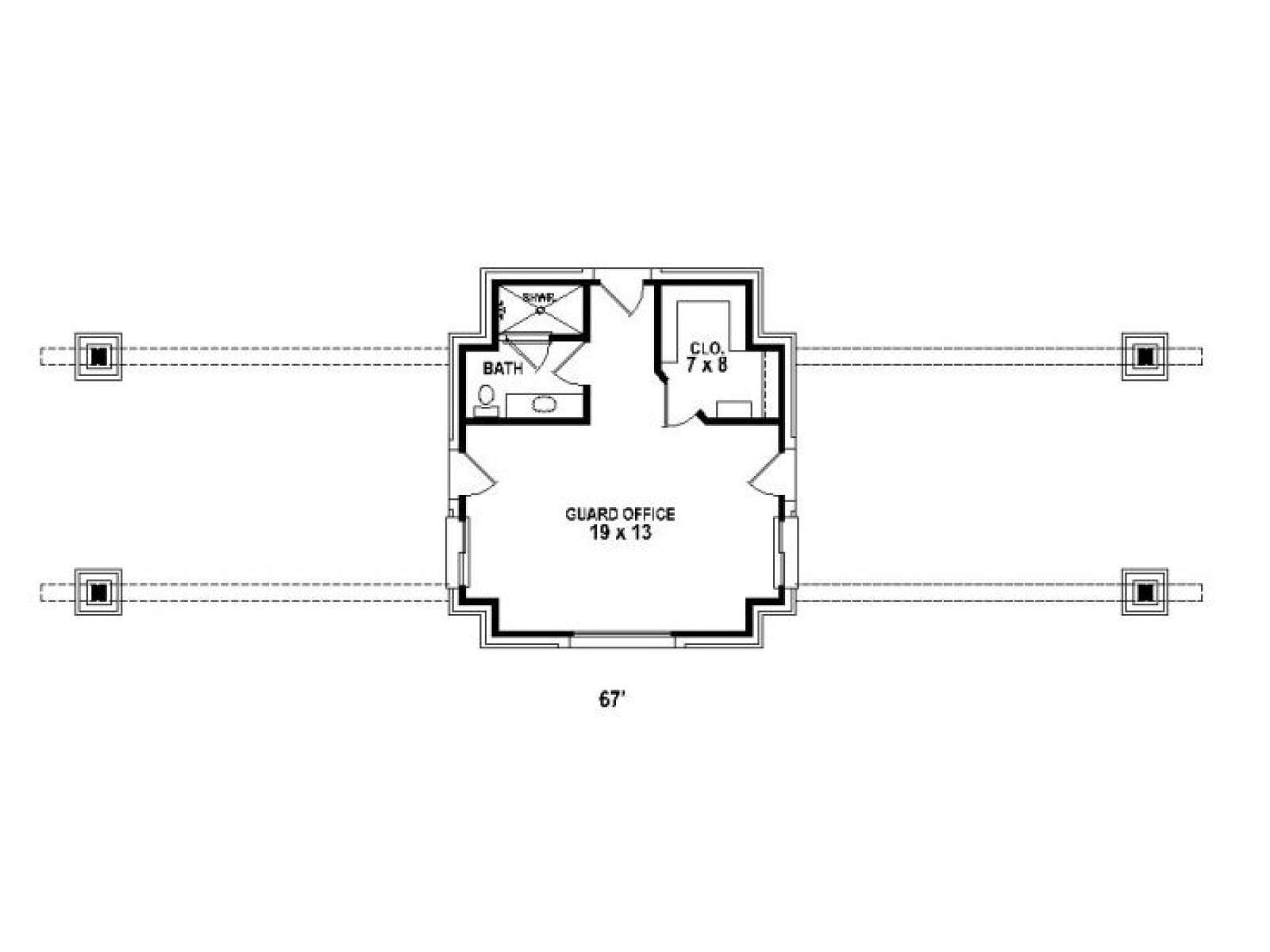

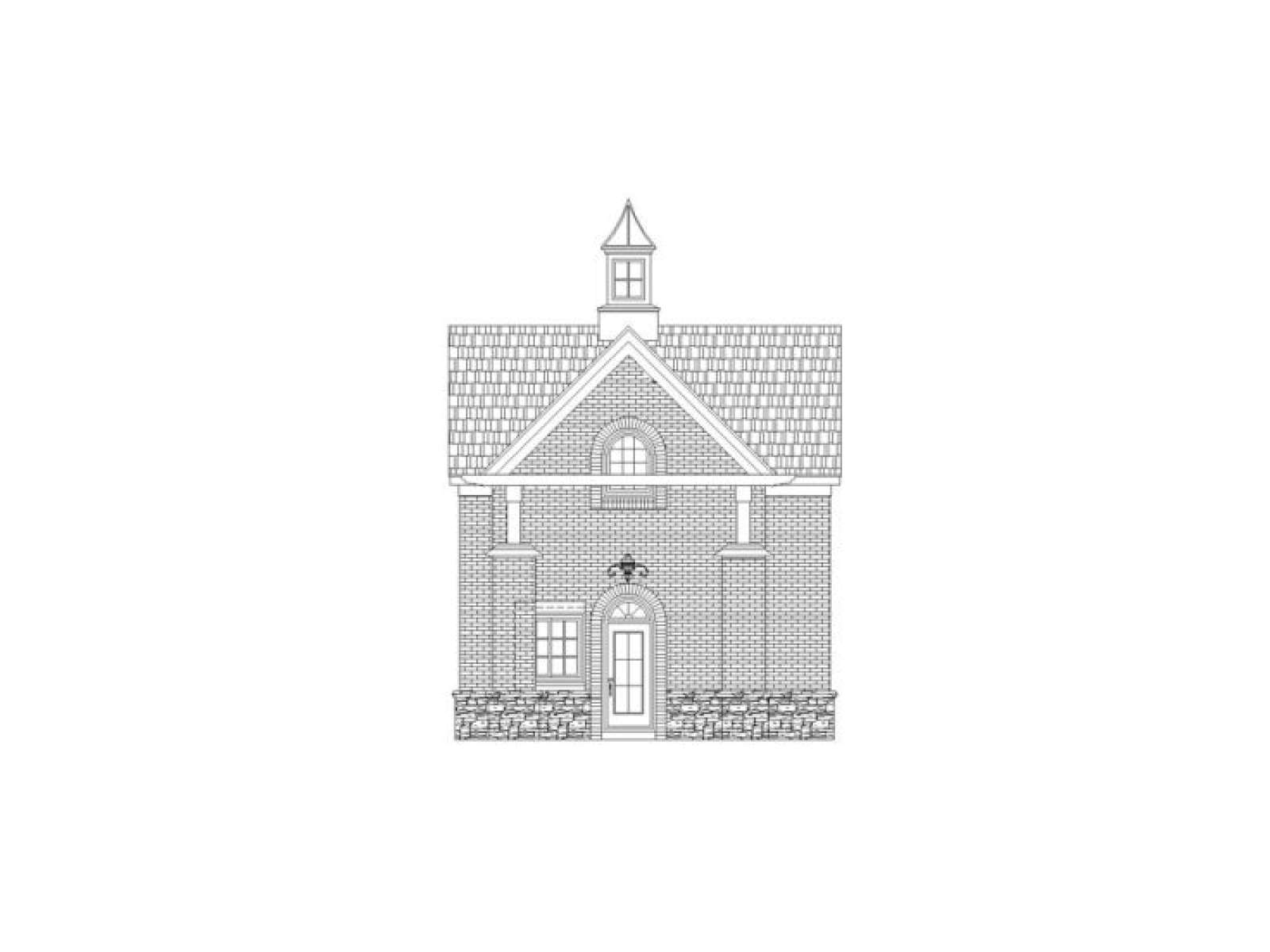

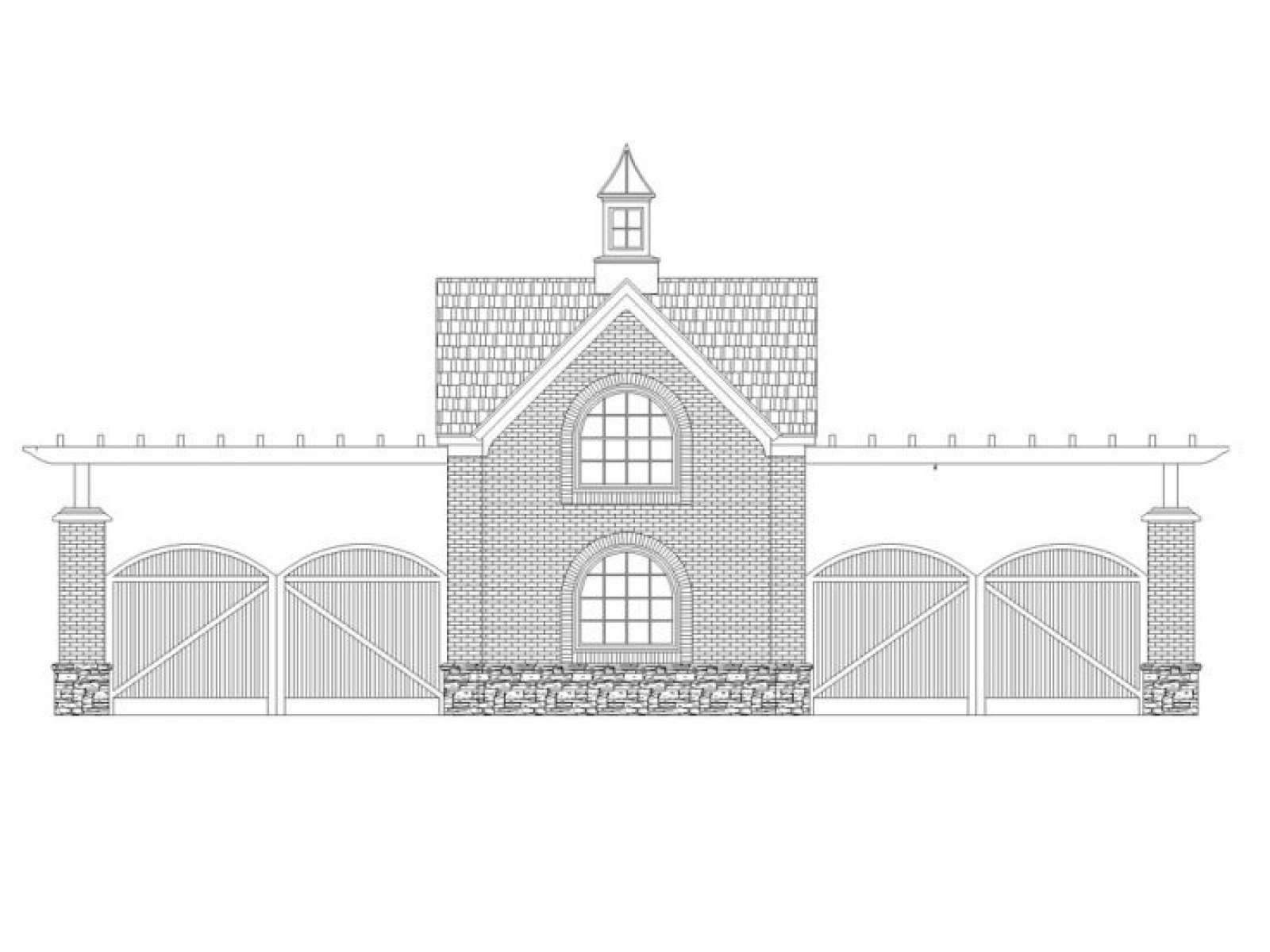

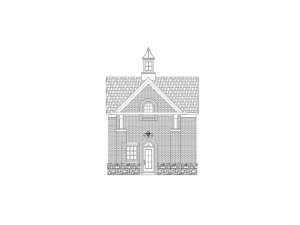

Guard house and gate provide privacy and safety for communities, country clubs, and estates
Overall width post to post is 65’-2”
Listed overall height includes the cupola, overall height is 25'-6" without the cupola
Total square footage – 454 sf guard house
Note: Exterior wall dimensions are rounded to the nearest foot. Contact us for specific measurements.

Heated Square Feet
First Floor	454
Total	454
Full Bathrooms	1
Width	67 ft. 0 in.
Depth	26 ft. 0 in.
Approximate Height	33 ft. 4 in.
Ceiling Height
First Floor	10 ft. 5 in.
Roof Pitch	12/12 Main
Roof Framing	Stick
Foundation Options	Slab
Exterior Wall Options	2x4

Purchased as PDF or CAD file

PDF and CAD files are delivered by email, and have no shipping and handling cost.

Purchased as paper plans

* Scroll right to view table

	Continental US	Canada	AK/HI	*International
Regular 8 - 12 business days	$35	n/a	n/a	n/a
Priority 3 - 4 business days	$40	n/a	$55	n/a
Express 1 - 2 business days	$55	n/a	n/a	n/a

There are no reviews

Add your review

Guard Office and Gate

Starting at

Select Plan Package Select Foundation Select Exterior Wall

Additional Options

Additional Set for Plan 006X-0025: $35.00 ea.

Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets Complete copy of the construction drawing. Since our blueprints cannot be photocopied, extra sets are available for purchase within 90 days of the original house plan purchase. [less] …[more]

Right Reading Reverse for Plan 006X-0025: $120.00

One-time surcharge for customers wanting to build the structure in reverse. All sets of construction One-time surcharge for customers wanting to build the structure in reverse. All sets of construction drawings in your plan package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols, and notes reading correctly, rather than mirrored. Your order will be fulfilled in right reading reverse format only. The standard format of the construction drawings will not be included with your order. [less] …[more]
