Horse Barn Plan, 006B-0010
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Add functionality and convenience to your rural property with this horse barn plan

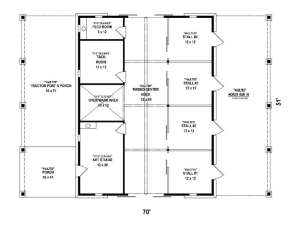

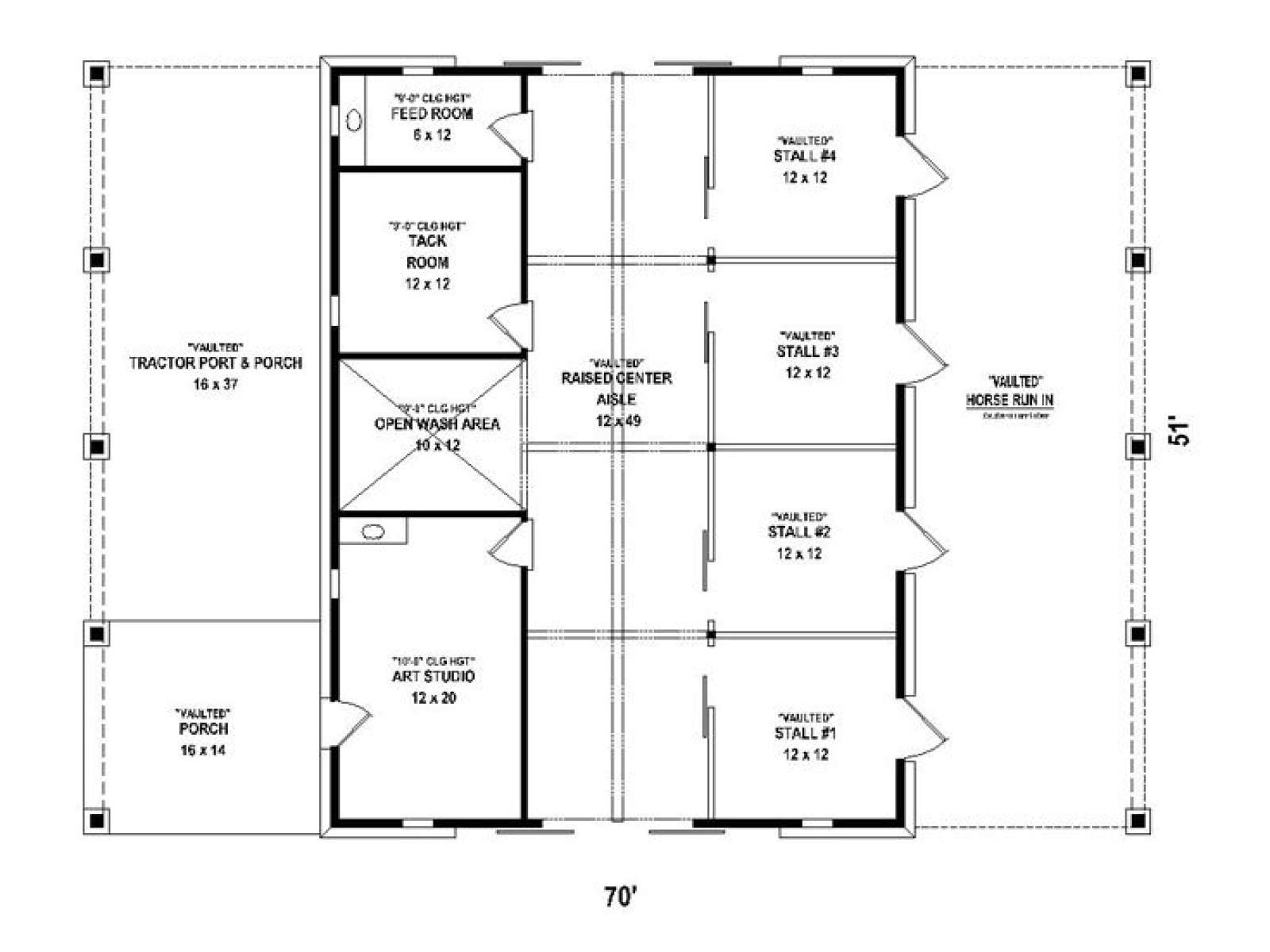

Offers four animal stalls, a feed room, tack room, wash area, horse run and tractor port
Well suited for livestock and machinery

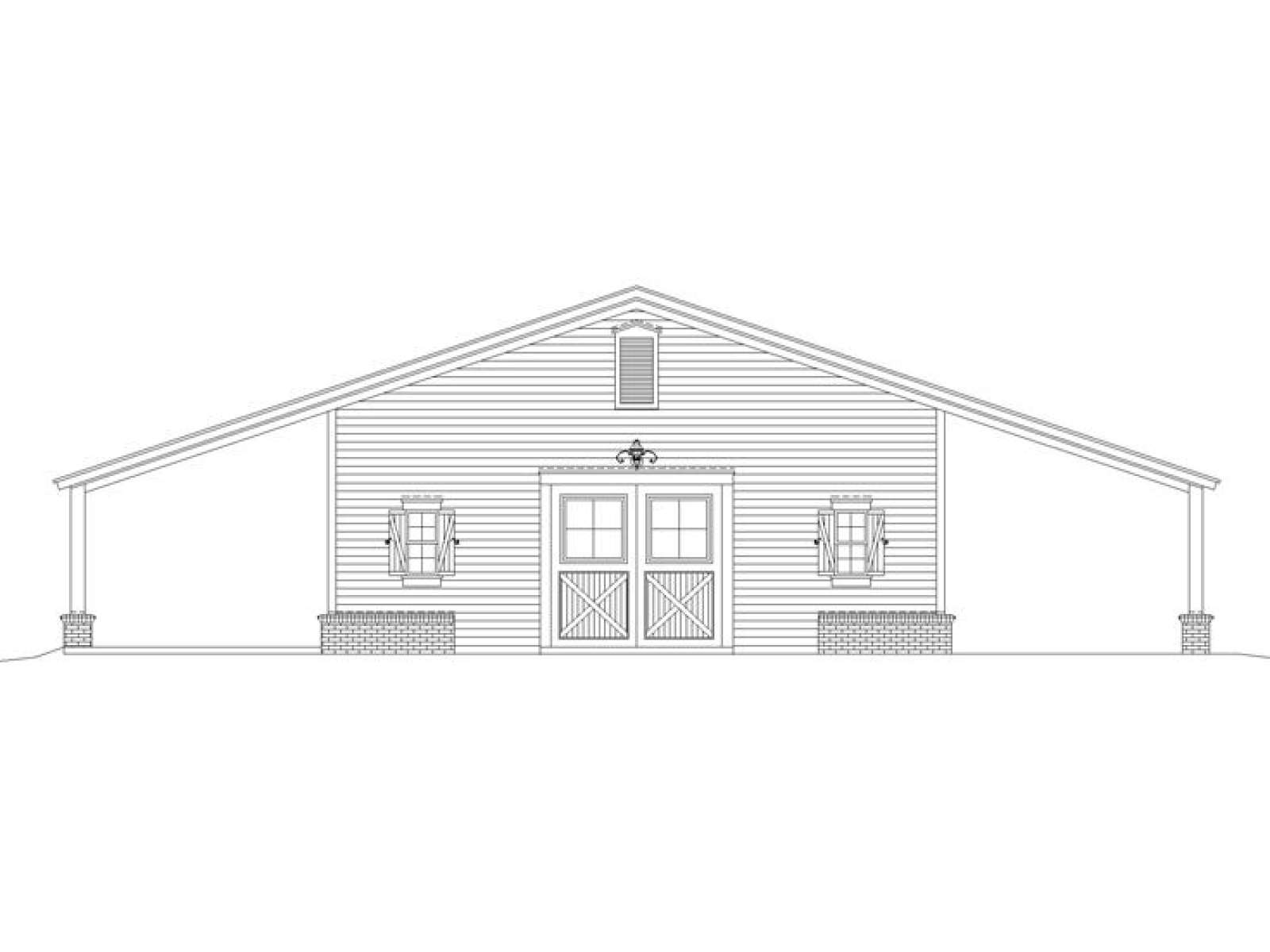

Sliding barn doors at either end of the center aisle make it easy to move about in the barn
An art studio provides a quiet place for sketching, painting, pottery and more
Foundation is slab with crushed limestone gravel in the stalls and tractor port
Ceiling height is 9' in feed and tack areas, 10' in the studio area and 14'-11" ceiling in stall, wash area and center aisle
Plans call for 10” columns for the tractor port and horse run area
Exterior wall dimensions are rounded to the nearest foot. Contact us for specific measurements.
| Heated Square Feet | |
| First Floor | 270 |
| Total | 270 |
| Unheated Square Feet | |
| Carport/Porte Cochere | 1590 |
| Outbuilding/Barn | 1629 |
| Width | 70 ft. 0 in. |
| Depth | 51 ft. 0 in. |
| Approximate Height | 22 ft. 2 in. |
| Roof Pitch | 4/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Interior Features |
|
Add functionality and convenience to your rural property with this horse barn plan
Offers four animal stalls, a feed room, tack room, wash area, horse run and tractor port
Well suited for livestock and machinery
Sliding barn doors at either end of the center aisle make it easy to move about in the barn
An art studio provides a quiet place for sketching, painting, pottery and more
Foundation is slab with crushed limestone gravel in the stalls and tractor port
Ceiling height is 9' in feed and tack areas, 10' in the studio area and 14'-11" ceiling in stall, wash area and center aisle
Plans call for 10” columns for the tractor port and horse run area
Exterior wall dimensions are rounded to the nearest foot. Contact us for specific measurements.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $35 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | n/a | $55 | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
