Horse Barn Plan, 006B-0008
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

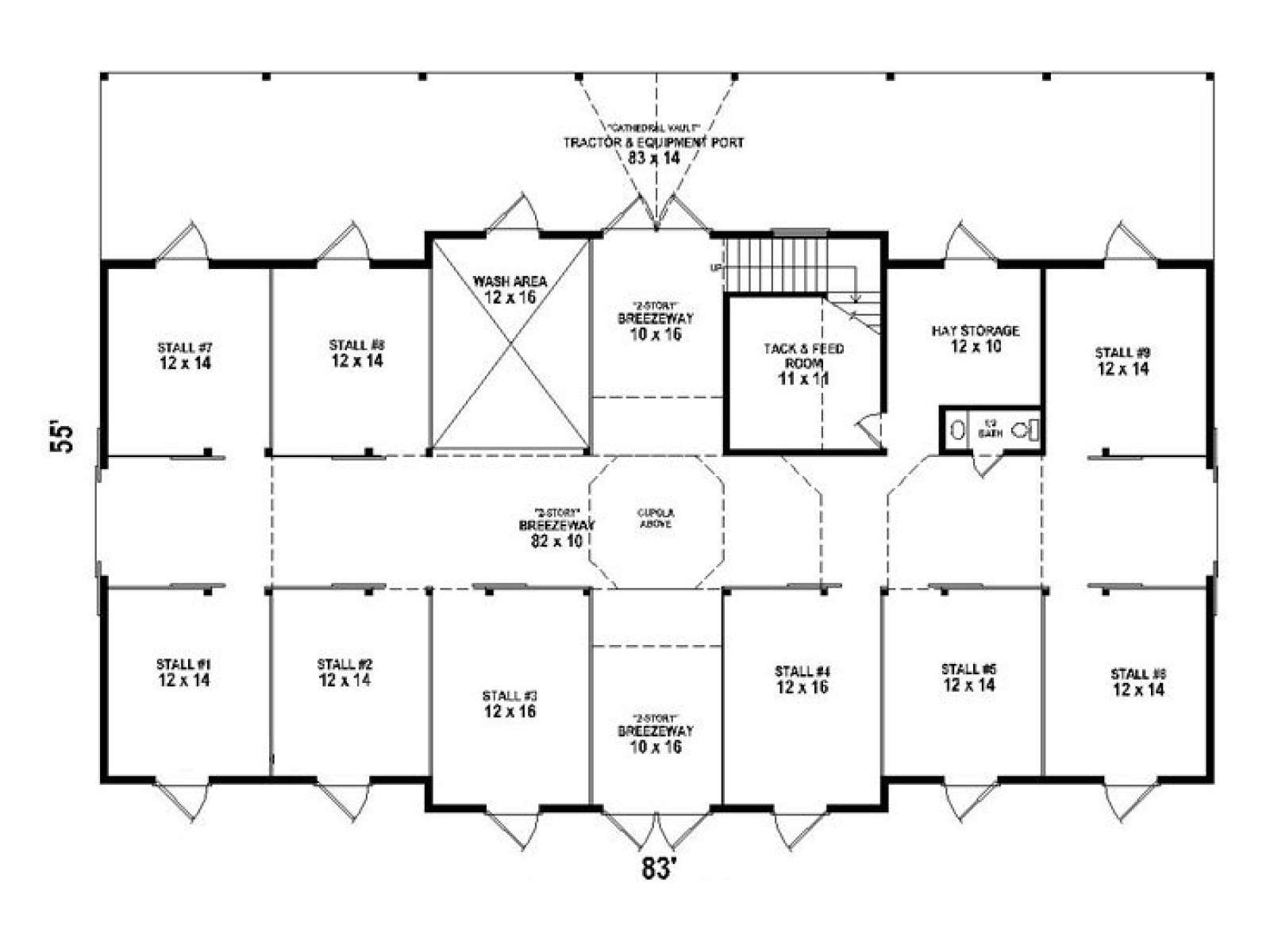

Horse barn plan features nine horse or animal stalls with individual doors that open to pasture, a riding ring or a fenced area

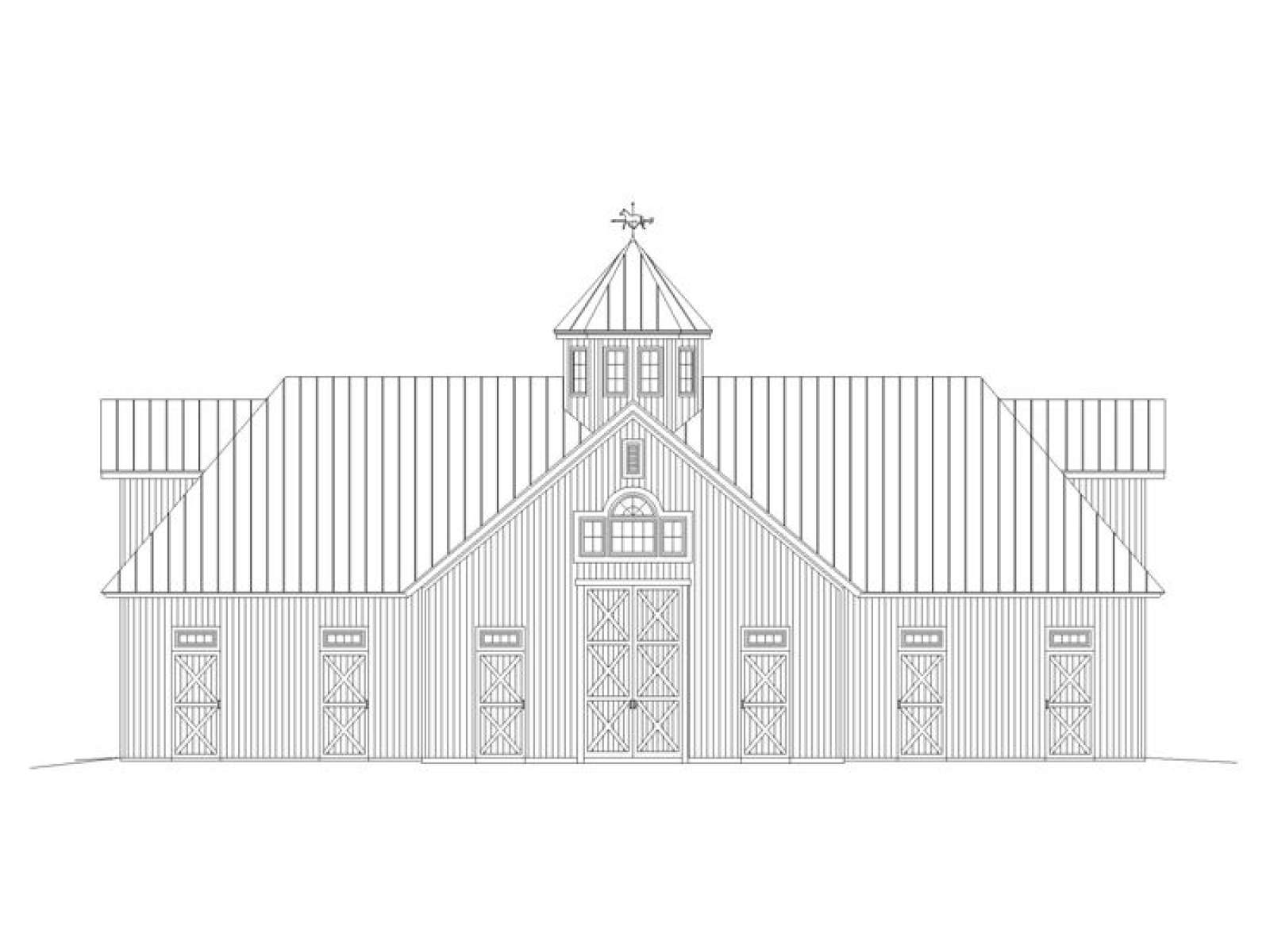

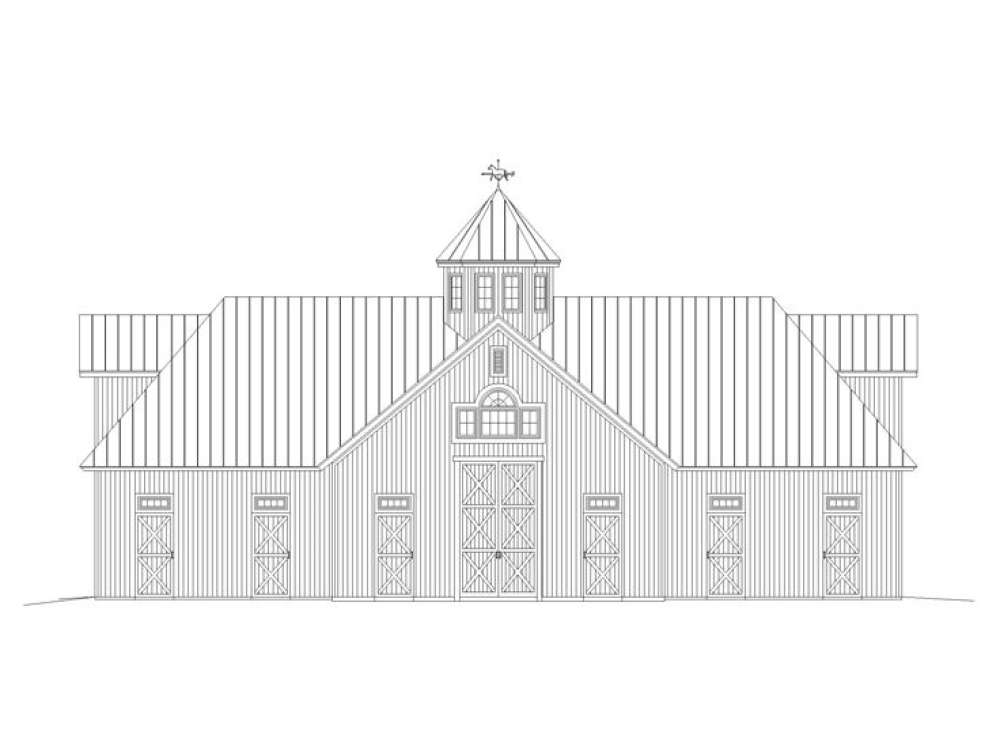

Design features sliding barn doors on either end of the structure, as well as, a half bath, a wash area, tack and feed room

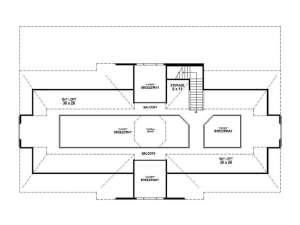

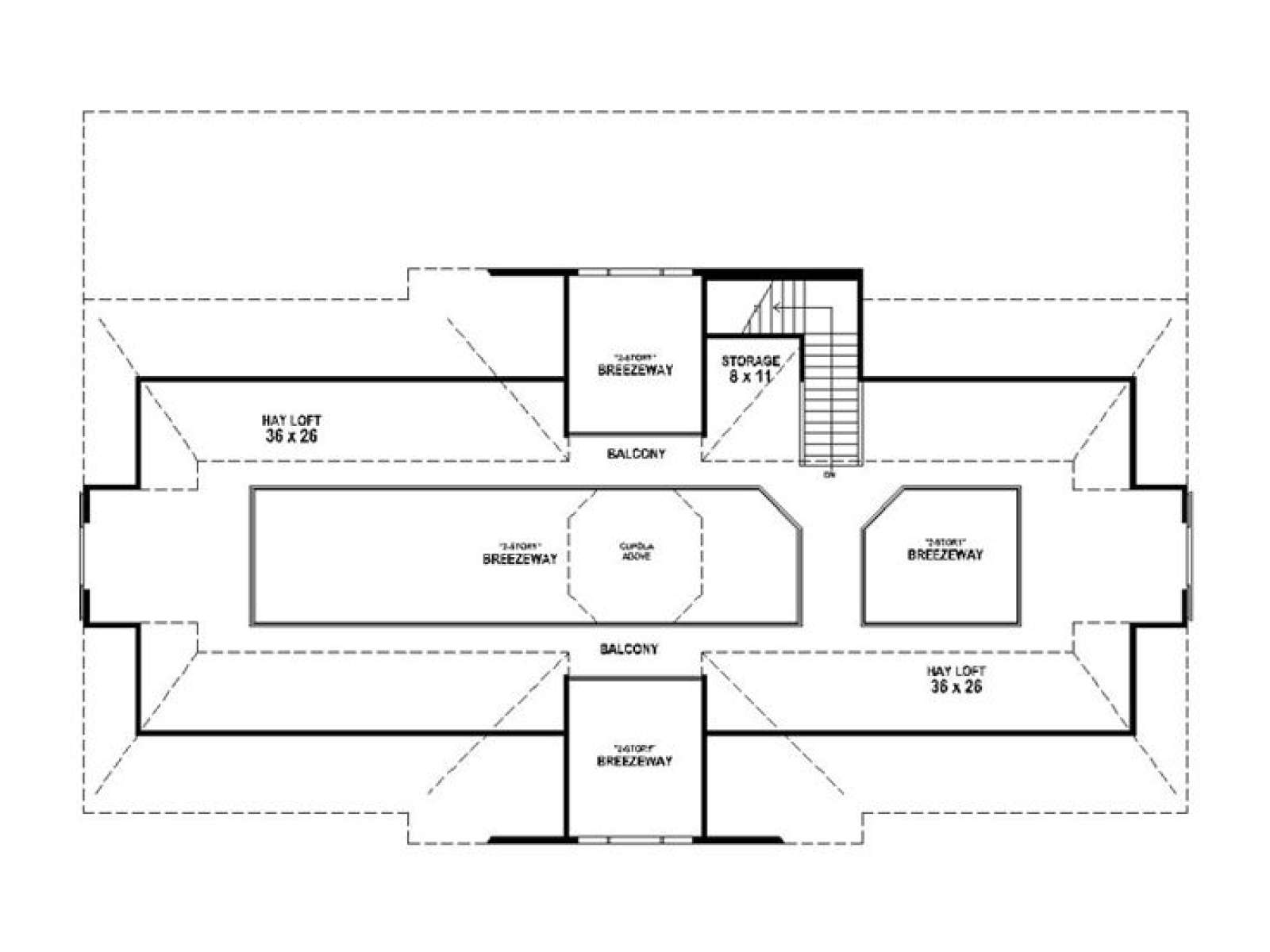

Loft provides plenty of room for hay storage and the tractor port accommodates a tractor or machinery
Exterior wall dimensions are rounded to the nearest foot. Contact us for specific measurements.
| Unheated Square Feet | |
| Carport/Porte Cochere | 1088 |
| Loft | 1492 |
| Outbuilding/Barn | 3397 |
| Half Bathrooms | 1 |
| Width | 83 ft. 0 in. |
| Depth | 55 ft. 0 in. |
| Approximate Height | 42 ft. 0 in. |
| Ceiling Height | |
| First Floor | 14 ft. 0 in. |
| Second Floor | 9 ft. 0 in. |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Horse barn plan features nine horse or animal stalls with individual doors that open to pasture, a riding ring or a fenced area
Design features sliding barn doors on either end of the structure, as well as, a half bath, a wash area, tack and feed room
Loft provides plenty of room for hay storage and the tractor port accommodates a tractor or machinery
Exterior wall dimensions are rounded to the nearest foot. Contact us for specific measurements.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $35 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | n/a | $55 | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
