Horse Barn Plan, 006B-0005
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

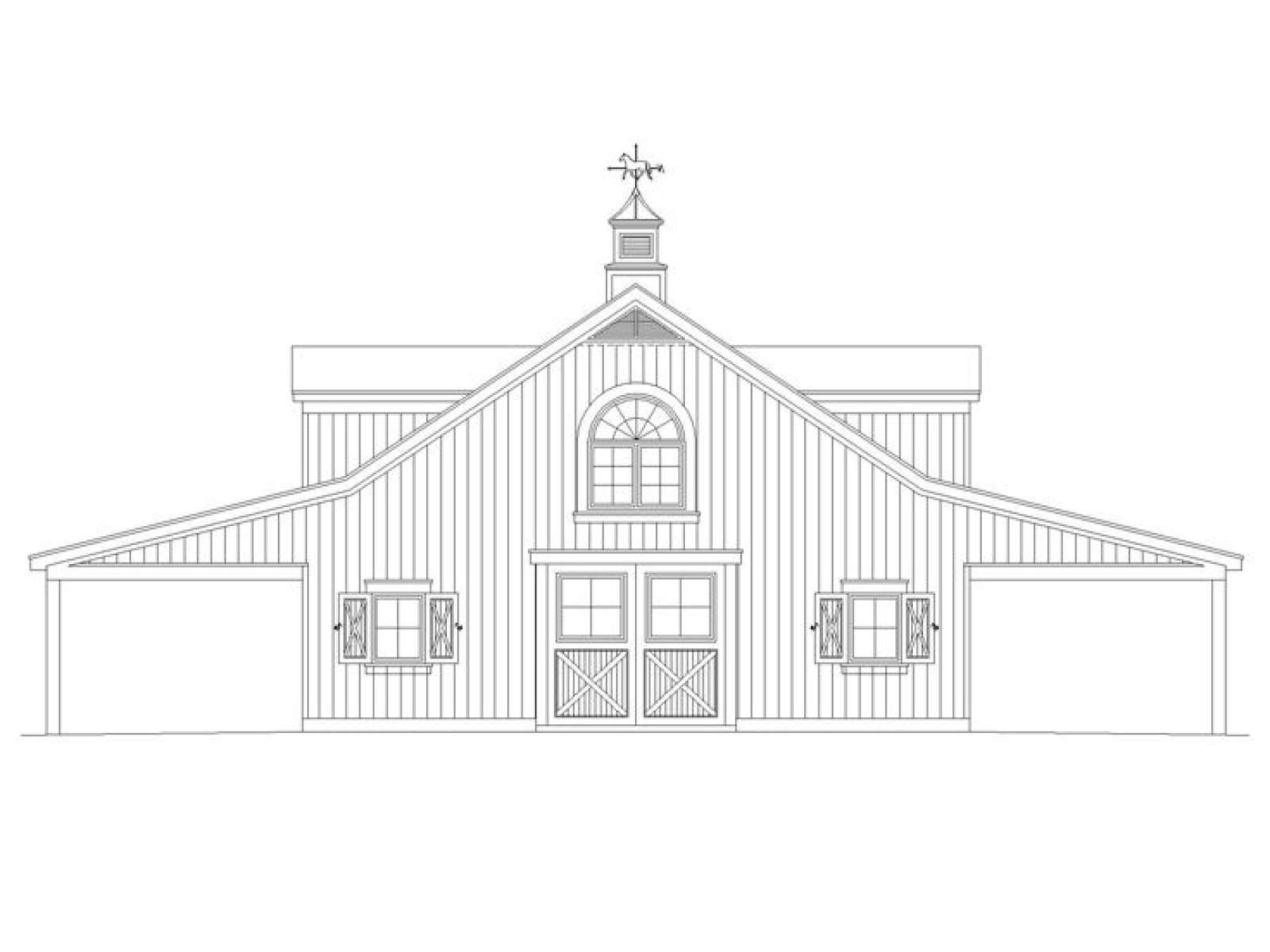

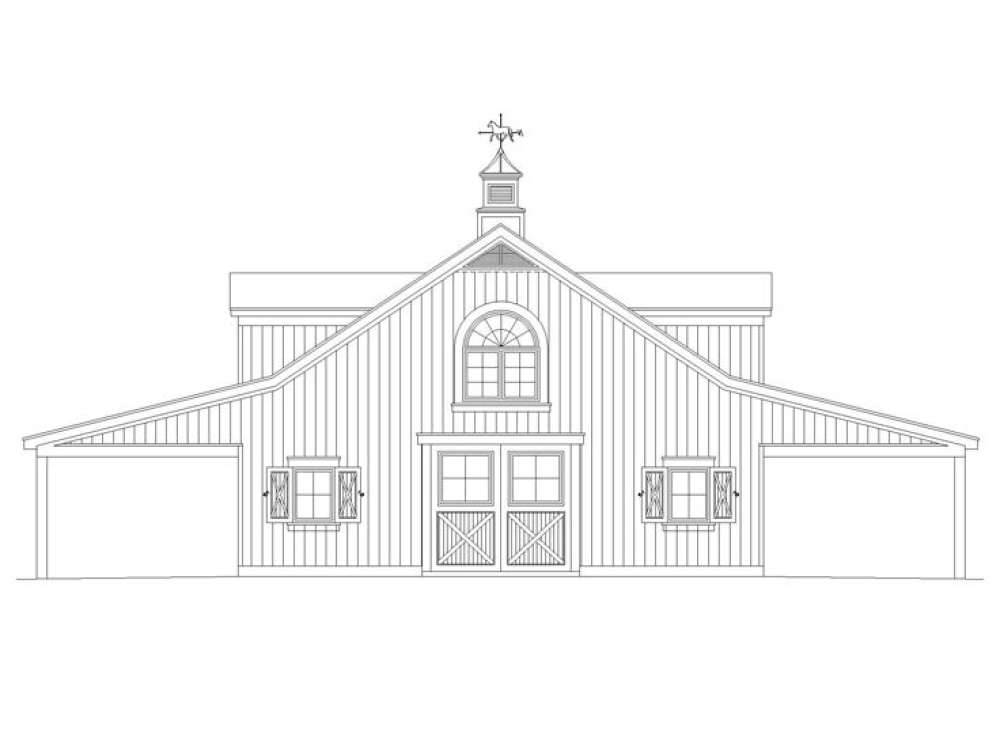

Practical house barn plan is just right for a farm or ranch that has a few horses

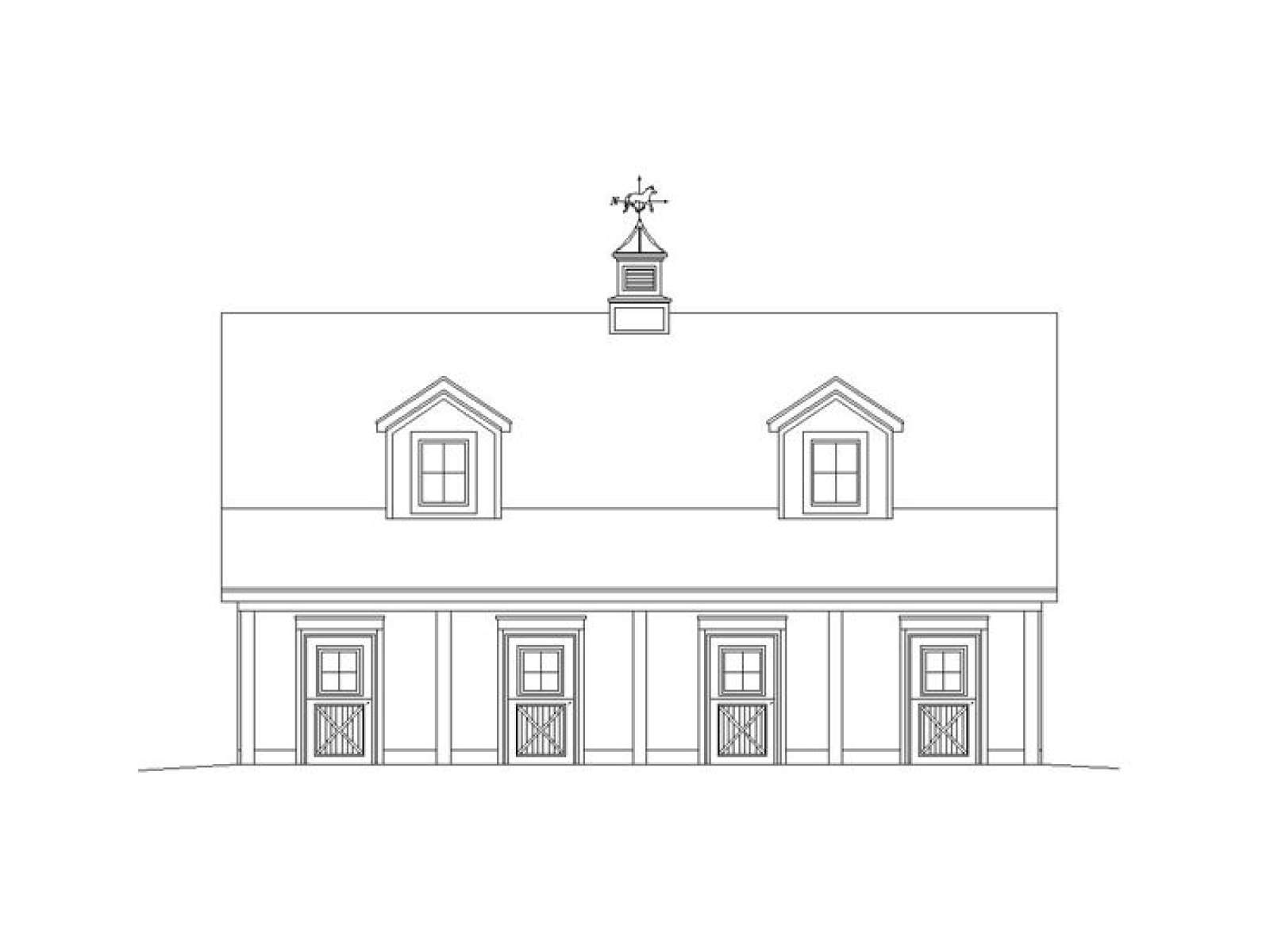

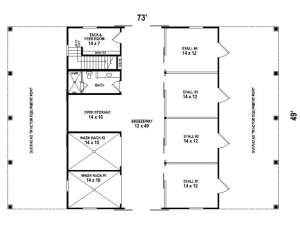

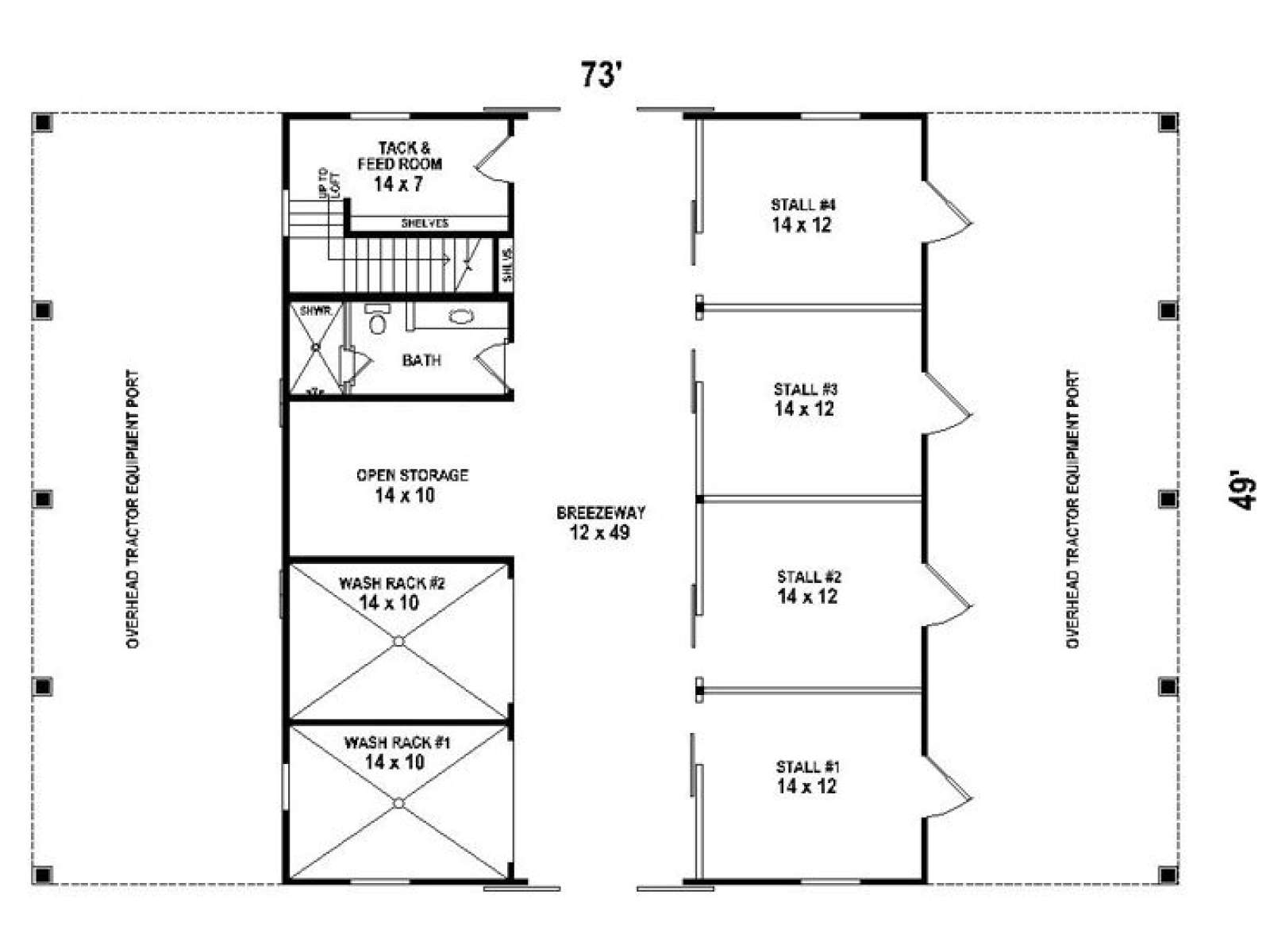

Design features four horse stalls with access to both the outdoors and the interior breezeway
Other features include a full bath, tack room and two wash rack area
Two tractor and equipment ports (790 square feet each) are just right for protecting your tractor, hose trailer or farm machinery from the elements
An unfinished loft provides plenty of storage upstairs
Exterior wall dimensions are rounded to the nearest foot. Contact us for specific measurements.
| Heated Square Feet | |
| First Floor | 102 |
| Total | 102 |
| Unheated Square Feet | |
| Carport/Porte Cochere | 1580 |
| Outbuilding/Barn | 1931 |
| Full Bathrooms | 1 |
| Width | 73 ft. 0 in. |
| Depth | 49 ft. 0 in. |
| Approximate Height | 33 ft. 3 in. |
| Ceiling Height | |
| First Floor | 10 ft. 0 in. |
| Roof Pitch | 8/12 Main |
| Roof Pitch | 3/12 Other |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Practical house barn plan is just right for a farm or ranch that has a few horses
Design features four horse stalls with access to both the outdoors and the interior breezeway
Other features include a full bath, tack room and two wash rack area
Two tractor and equipment ports (790 square feet each) are just right for protecting your tractor, hose trailer or farm machinery from the elements
An unfinished loft provides plenty of storage upstairs
Exterior wall dimensions are rounded to the nearest foot. Contact us for specific measurements.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $35 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | n/a | $55 | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
