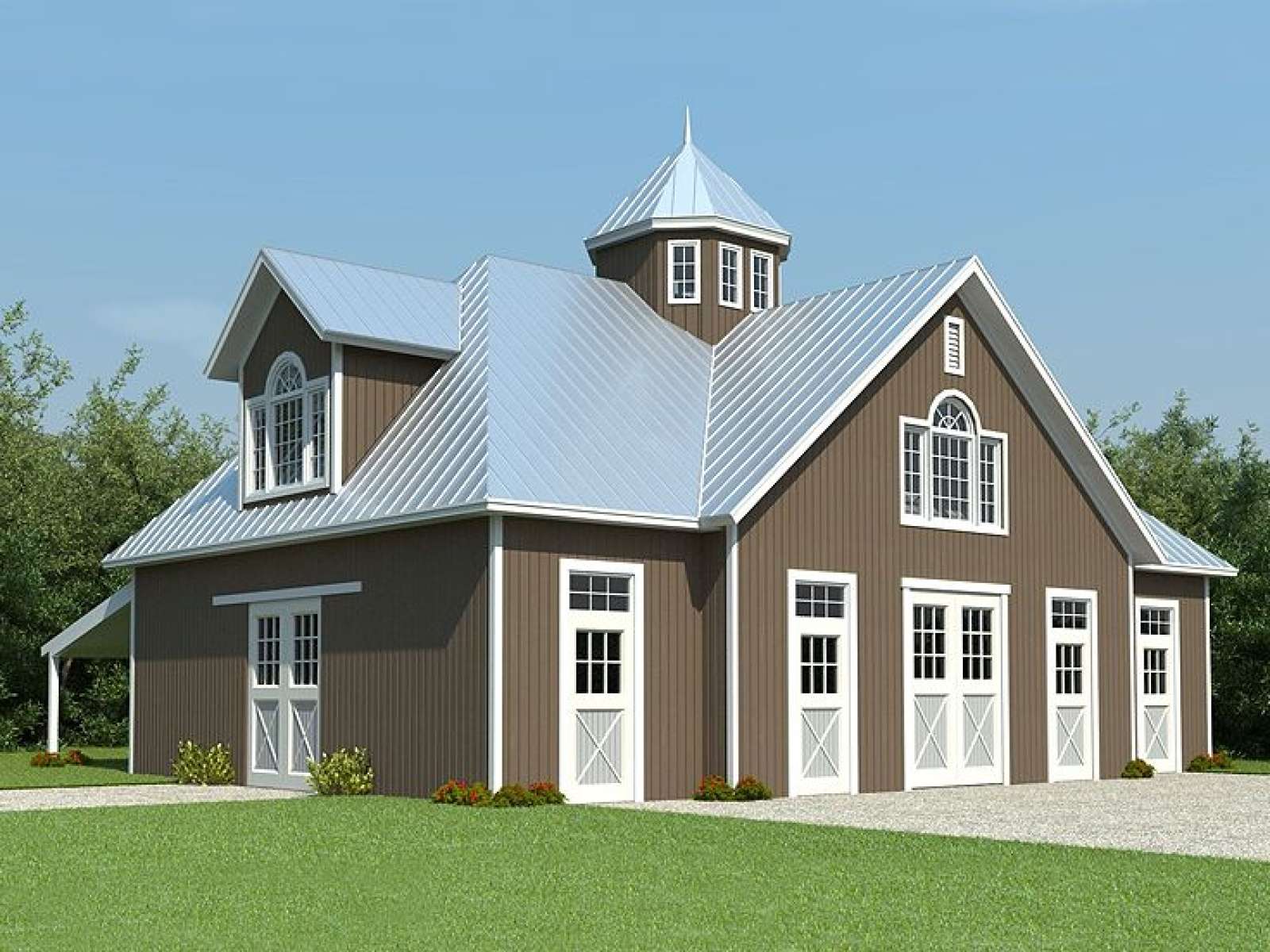

Horse Barn Plan, 006B-0003
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Horse barn plan thoughtfully designed for horse owners

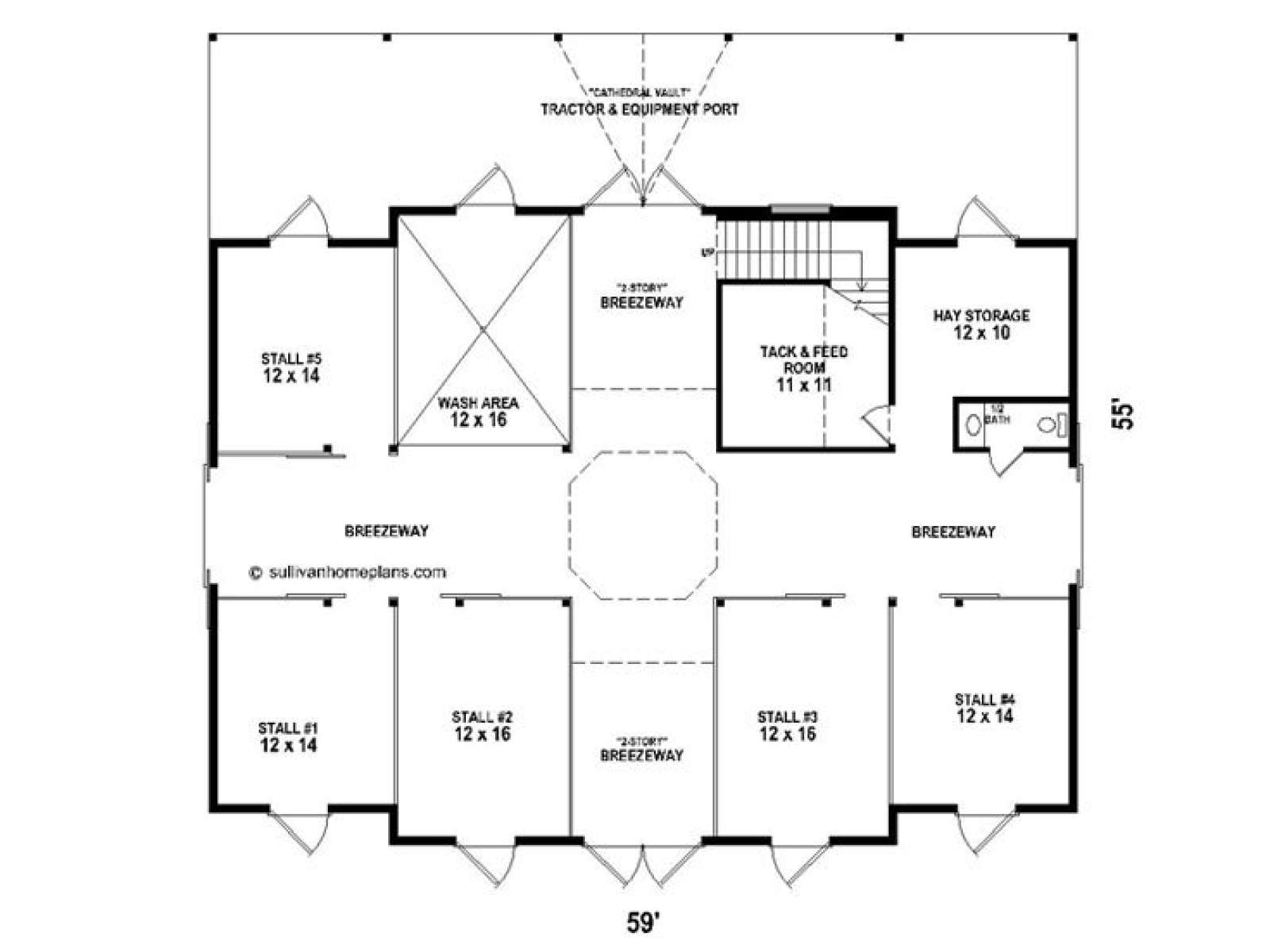

Features five horse stalls each with access to the outdoors (i.e. pasture or riding ring) and access to the interior breezeway
Design features large wash area, feed room, tack room and half bath
Covered tractor/equipment port protects tractors and other machinery from the elements

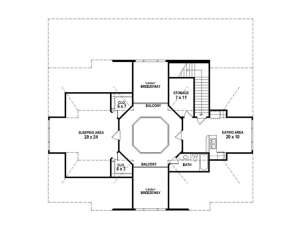

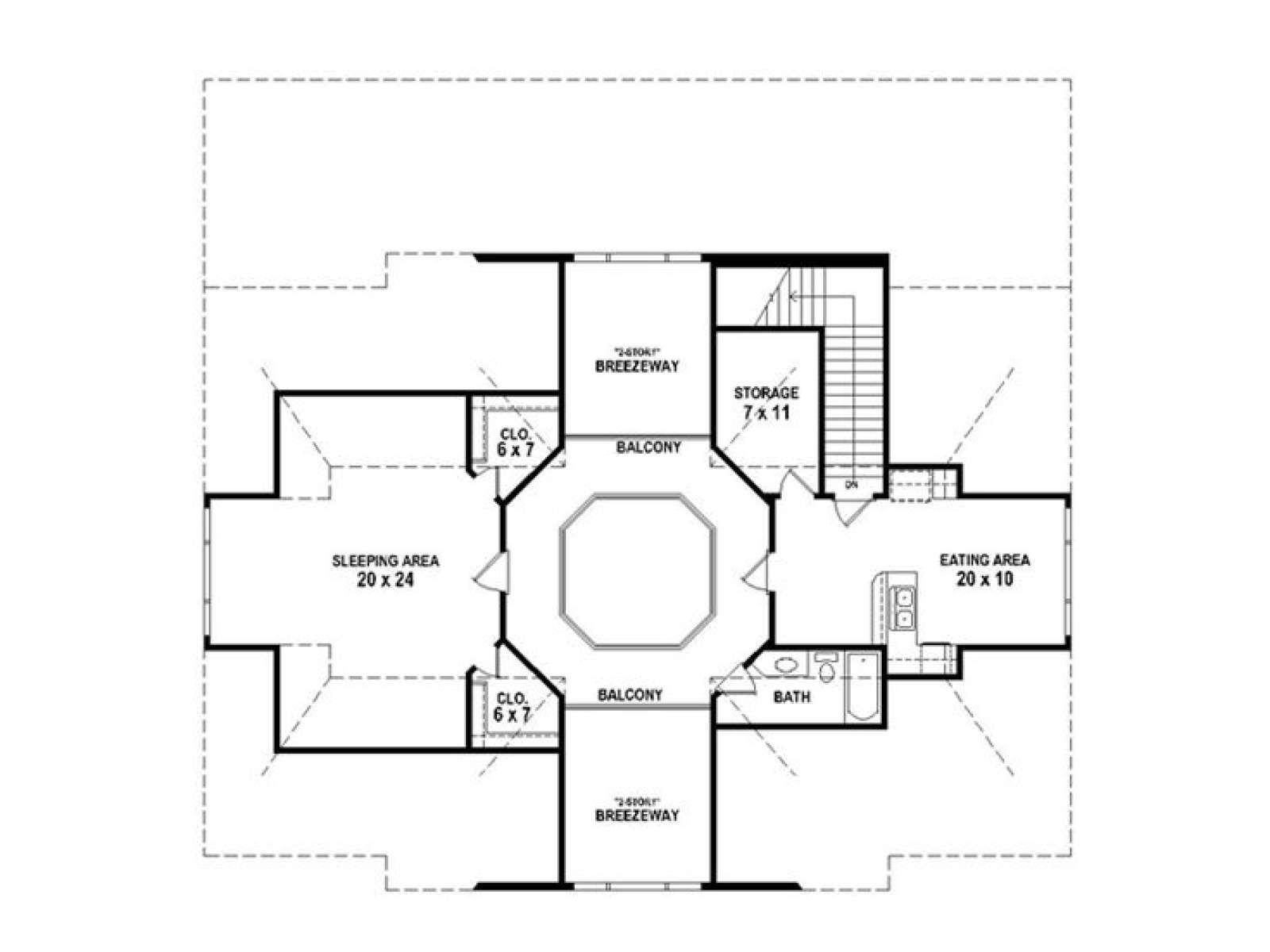

An octagonal balcony connects the finished living spaces upstairs including a large bedroom, full bath and eating area
First floor exterior wall framing is 2x6. Second floor wall framing is 2x4 except the front and rear gables which are 2x6.
| Heated Square Feet | |
| First Floor | 32 |
| Second Floor | 875 |
| Total | 907 |
| Unheated Square Feet | |
| Outbuilding/Barn | 3211 |
| Other | 198 |
| Bedrooms | 1 |
| Full Bathrooms | 1 |
| Half Bathrooms | 1 |
| Width | 59 ft. 1 in. |
| Depth | 55 ft. 3 in. |
| Approximate Height | 42 ft. 5 in. |
| Ceiling Height | |
| First Floor | 14 ft. 0 in. |
| Second Floor | 9 ft. 0 in. |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
Horse barn plan thoughtfully designed for horse owners
Features five horse stalls each with access to the outdoors (i.e. pasture or riding ring) and access to the interior breezeway
Design features large wash area, feed room, tack room and half bath
Covered tractor/equipment port protects tractors and other machinery from the elements
An octagonal balcony connects the finished living spaces upstairs including a large bedroom, full bath and eating area
First floor exterior wall framing is 2x6. Second floor wall framing is 2x4 except the front and rear gables which are 2x6.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $35 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | n/a | $55 | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
