Plan 050P-0014

Click to enlarge. Views may vary slightly from working drawings. Refer to floor plan for actual layout.

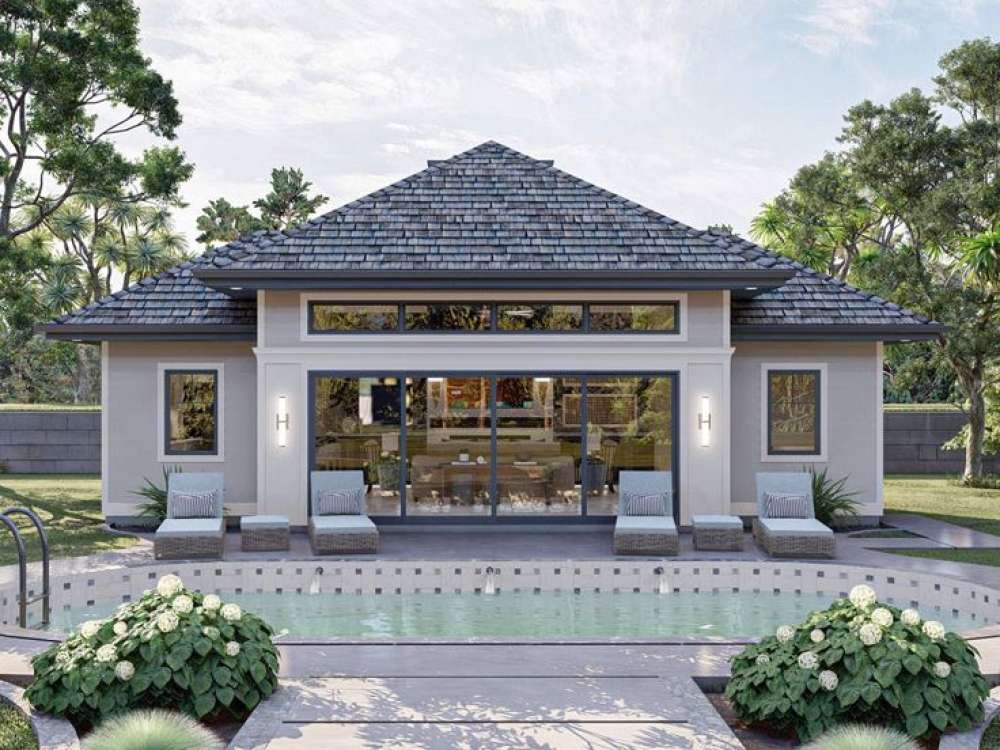

Pool House Plan, 050P-0014
Backyard Pool House, 050P-0014
Cabana Plan, 050P-0014
Pool House View, 050P-0014
Pool House View 2, 050P-0014
Wet Bar View, 050P-0014
Floor Plan, 050P-0014
Add to Cart Add to Favorites More by this Designer
Add to Cart
Add to Favorites More by this Designer

Click large image to zoom.

Pool House with Wet Bar

Plan Details

Heated Sq. Ft.
  First Floor  546 sq. ft.
  Total  546 sq. ft.

  Half Baths  1

Dimensions
  Width  36 ft. 0 in.
  Depth  20 ft. 0 in.

Roof Pitch
  8/12 Main

Roof Framing
  Stick

Exterior Wall
  2x4

Foundation
  Slab

Plan Features

There are no features for this plan.

Plan Description

The ceiling height is 11’ in the center section (pool house area)
The ceiling height is 9’ on the sides (wet bar and mechanical/half bath areas)


Order Plan


Complete construction drawing (excludes commercial plans) in electronic format for use by design professionals to make substantial changes to the blueprint. Comes with a copyright release granting legal permission to change the designer's original copyrighted house plan and reproduce it for construction. You must have CAD software to open a CAD file. Some CAD files can be emailed, while others must be shipped on a CD. Note: Some of our designers require customers to sign and return a licensing agreement before the plans are emailed or shipped.		 $900.00

Electronic file of the construction drawing delivered by email to the customer usually within 24-48 hours of purchasing (during regular business hours.) Includes a copyright release to print the blueprints needed for construction. Copies can be printed on 8 1/2" x 11" sheets right from your computer or take the file to a blueprint shop and print full sized project plans for construction. Saves time and shipping costs. Note: Some of our designers require customers to sign and return a licensing agreement before the plans are emailed. 		$600.00

Foundation

$0.00

Exterior Wall

$0.00

Other Options


One-time surcharge. All sets of project plans in your blueprint package will come in full reverse essentially flipping the floor plan from left to right with all text, symbols and notes readable, rather than mirrored. 		$300.00

A general listing of the quantities and sizes of materials needed for construction of your project . This tool aids your builder in the estimating process. Note: A material list cannot be sold without the simultaneous or prior purchase of a construction blueprint package. 		$300.00

Processing and Shipping

Processing and shipping fees are calculated per plan, and not per total order. Rates are subject to change without notice.

Continental US Canada AK/HI *International
Regular - 8-12 business days n/a n/a n/a n/a
Priority - 3-5 business days n/a n/a n/a n/a
Express - 1-2 business days n/a n/a n/a n/a

*Please Note: International orders may take up to 3 weeks for delivery.

.
