Horse Barn Plan, 066B-0001
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Horse barn plan with loft is ideal for those raising horses

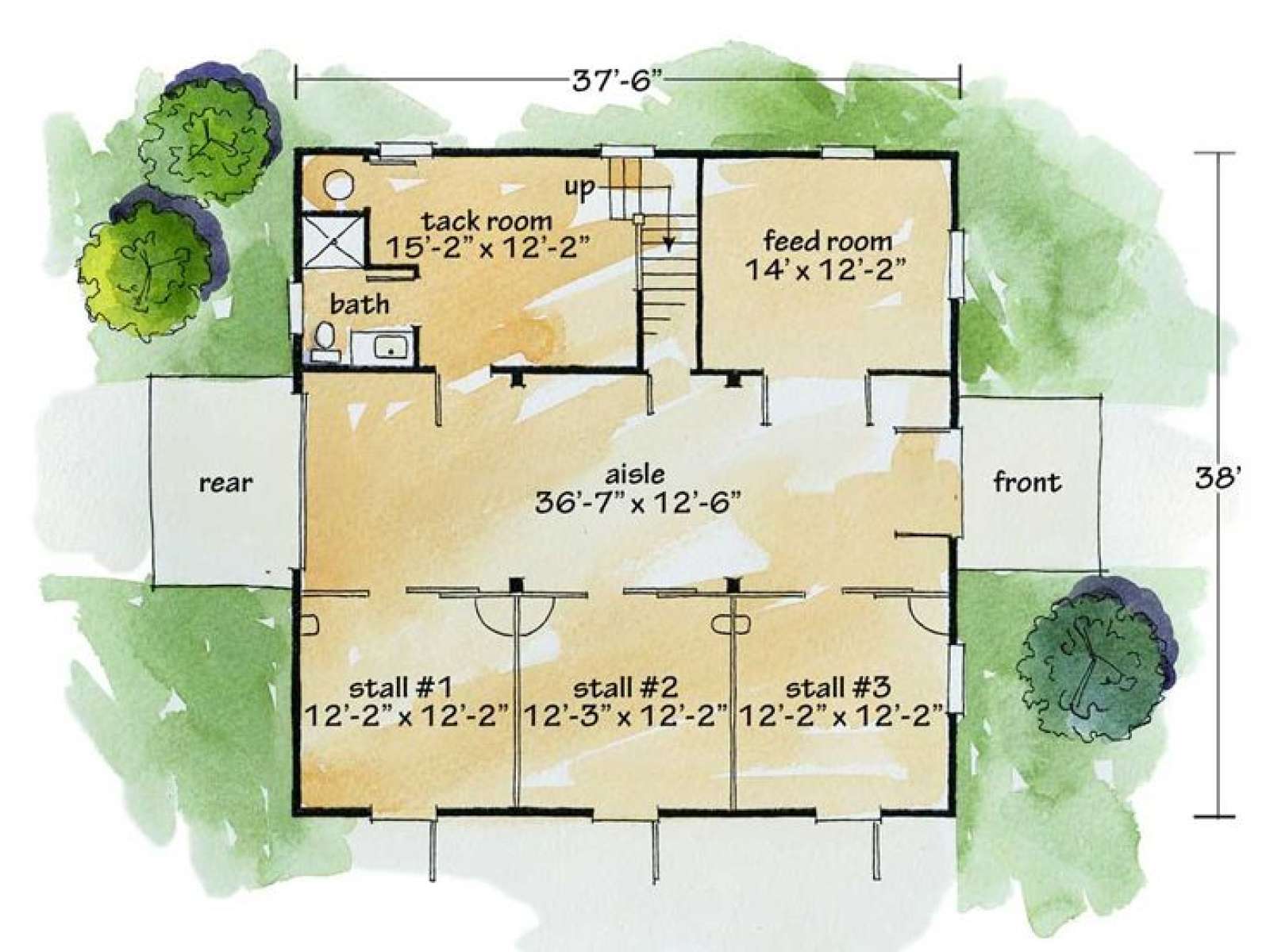

Main floor offers three horse stalls, feed room, tack room, half bath and convenient center aisle

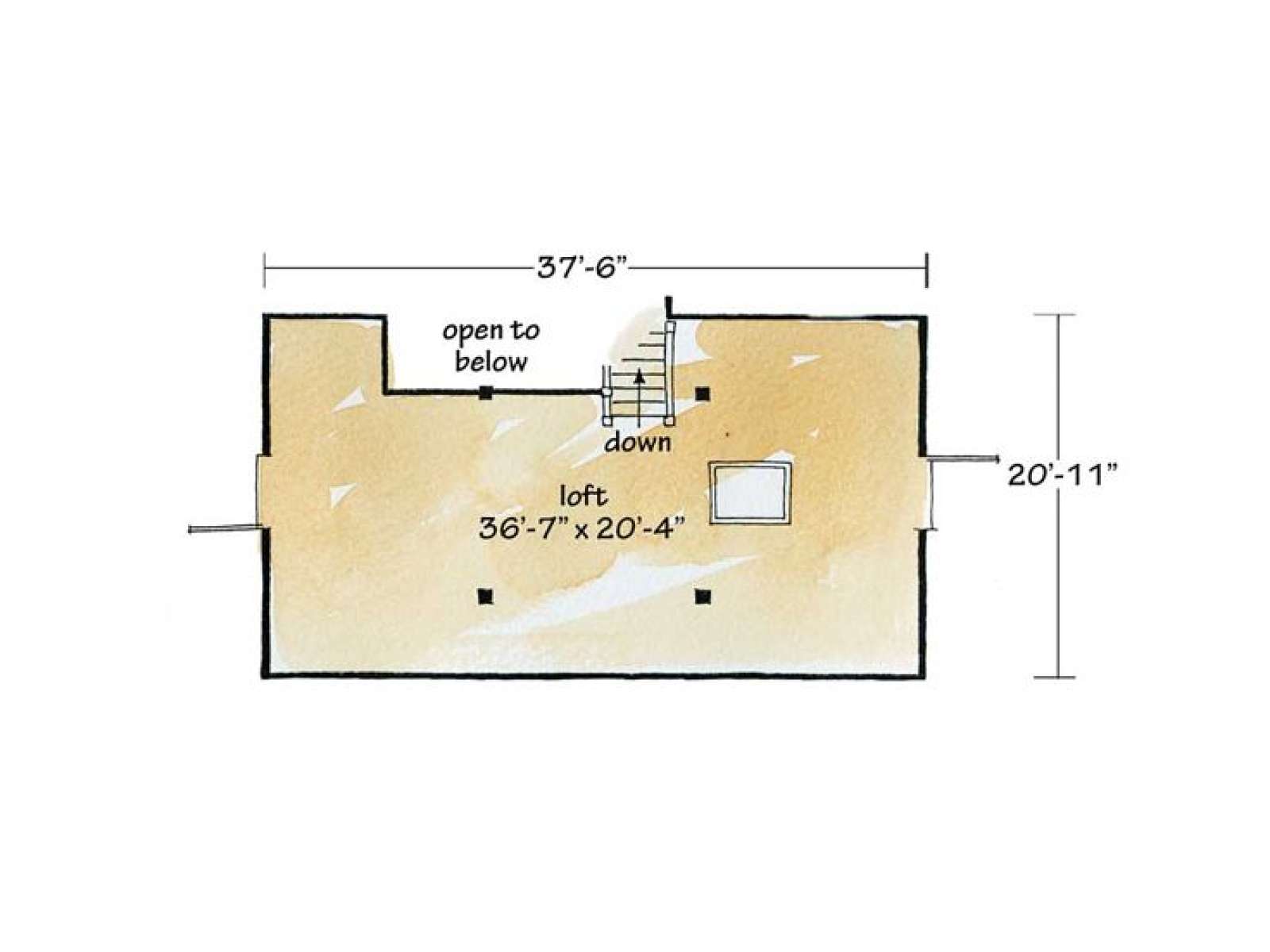

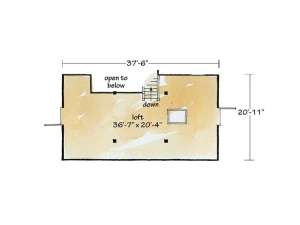

Loft provides storage space
Per designer, roof system can be stick/conventionally framed or trussed based on local building codes and common practices
| Unheated Square Feet | |
| Loft | 604 |
| Outbuilding/Barn | 1425 |
| Full Bathrooms | 1 |
| Width | 37 ft. 6 in. |
| Depth | 38 ft. 0 in. |
| Approximate Height | 29 ft. 6 in. |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
Horse barn plan with loft is ideal for those raising horses
Main floor offers three horse stalls, feed room, tack room, half bath and convenient center aisle
Loft provides storage space
Per designer, roof system can be stick/conventionally framed or trussed based on local building codes and common practices
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | n/a | n/a |
| Priority 3 - 4 business days | n/a | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
